MARK1

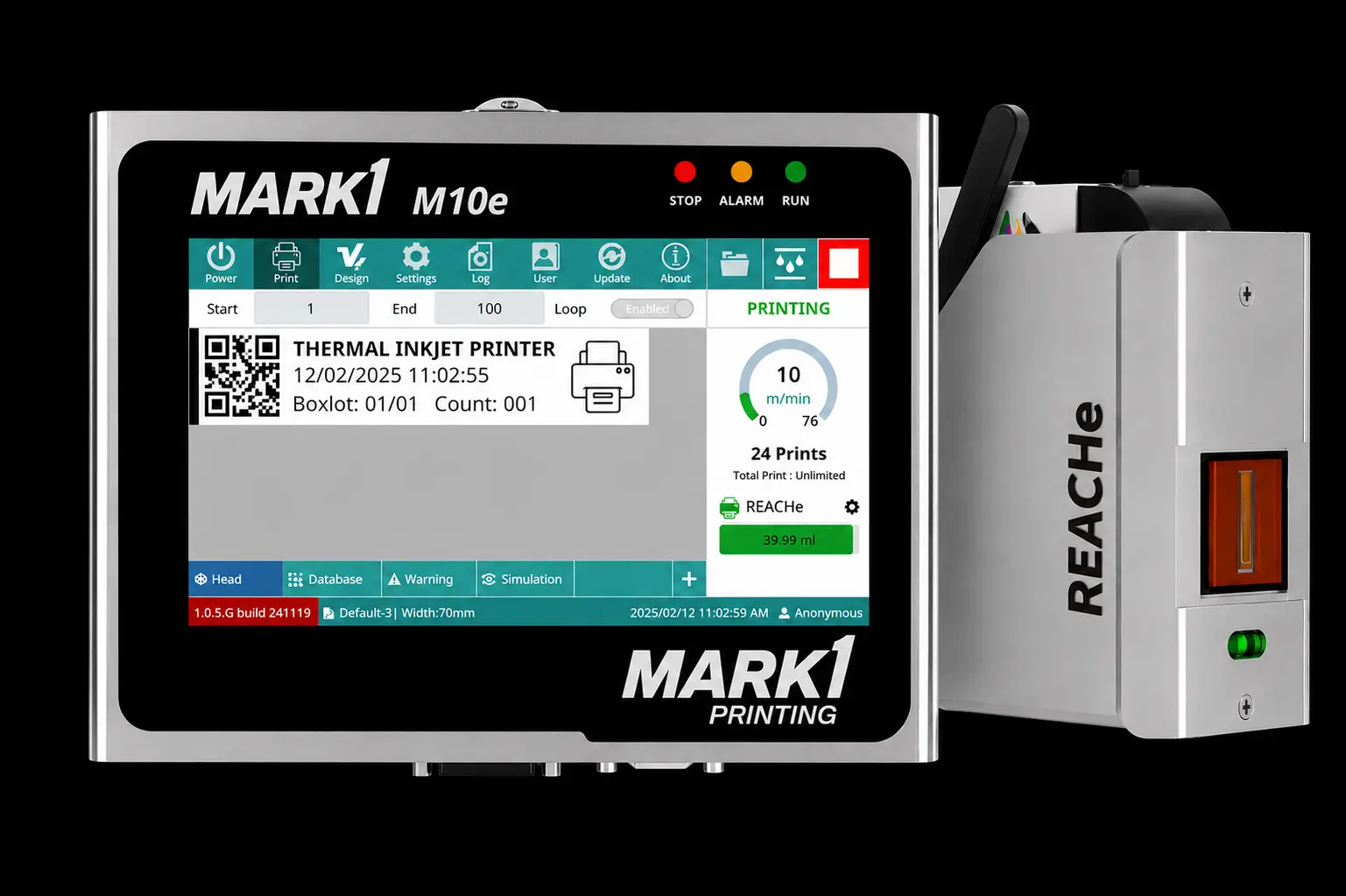

M10e REACHe (13.5 mm) Thermal Inkjet Printer
Funai TIJ Technology
10mm Throw Distance
7" Touch Screen
The MARK1 M10e REACHe is an advanced Thermal Inkjet Printer equipped with a specialized Funai TIJ printhead. Engineered for challenging packaging environments, it delivers high-resolution 13.5mm codes with an impressive throw distance of up to 10mm, ensuring reliable printing on recessed or uneven surfaces.
- Powered by Funai TIJ technology, enabling a unique throw distance of up to 10mm for uneven surfaces.
- Capable of printing high-resolution 1D/2D barcodes, logos, and text up to 13.5mm in height.
- Intuitive WYSIWYG 7" LCD Resistive Touch Screen for effortless template designing and control.
- Integrates flawlessly with external devices like PLC, Cameras, and Checkweighers via RJ45.
Not ready to buy yet? Talk to someone from our team

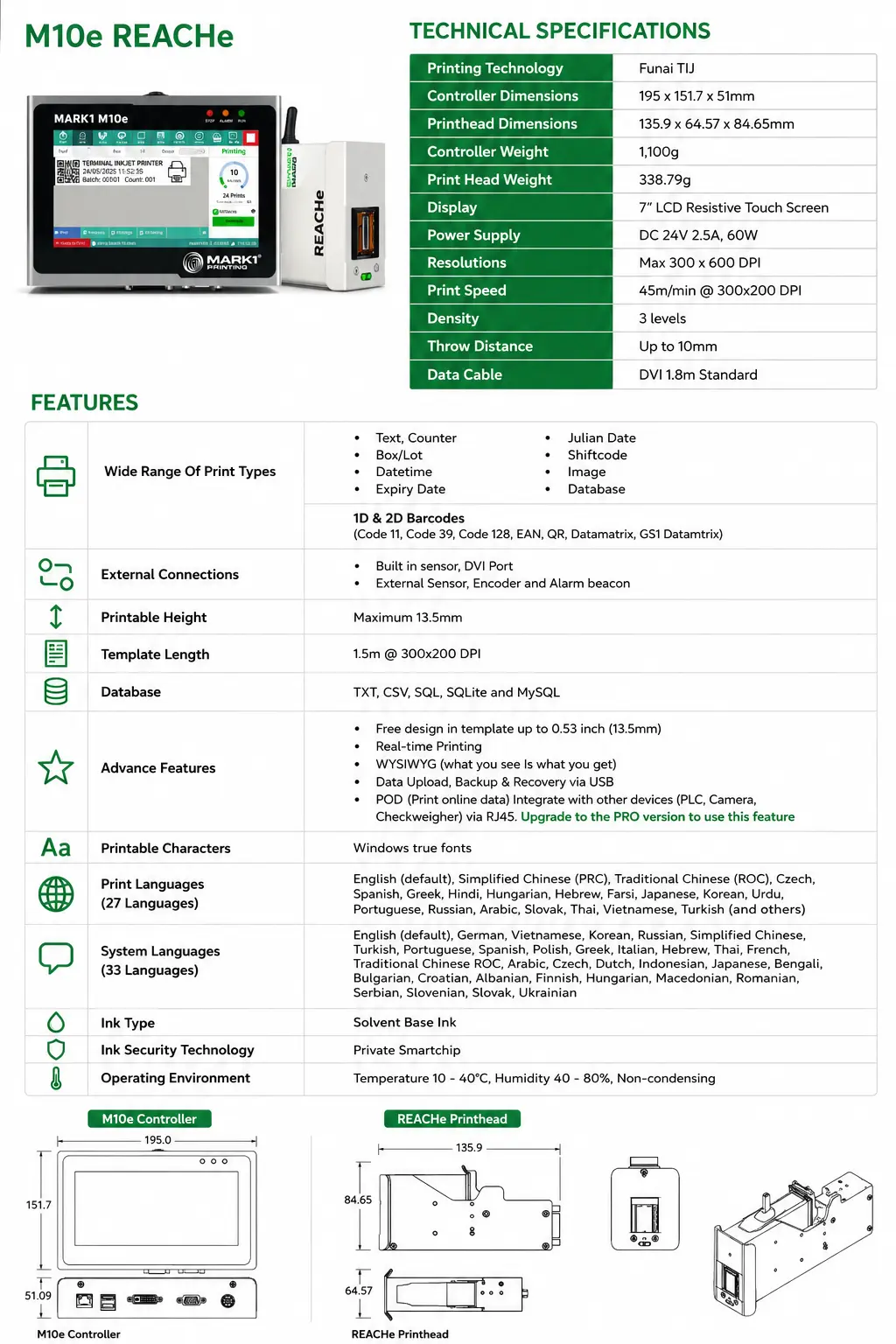

| Printing Technology | Funai TIJ |
| Max Print Height | 13.5 mm (0.53 Inch) |
| Throw Distance | Up to 10 mm |
| Max Print Speed | 45 m/min @ 300x200 DPI |
| Resolutions | Max 300 x 600 DPI |
| Display | 7" LCD Resistive Touch Screen |
| Ink Type Options | Solvent Base Ink (Private Smartchip) |
| Supported Databases | TXT, CSV, SQL, SQLite, and MySQL |
| Power Supply | DC 24V 2.5A, 60W |
| Brand | MARK1 |
| Model Number | M10e REACHe |
| Controller Weight | 1,100 g |
| Printhead Weight | 338.79 g |
Detailed Description
The MARK1 M10e with REACHe printhead is engineered to solve the problem of hard-to-reach coding areas. By utilizing industry-leading Funai TIJ technology, this robust system ensures consistent, high-contrast marks on diverse surfaces even from a 10mm distance, eliminating the limitations of standard TIJ printers.
Key Capabilities
- Advanced Print Elements: Capable of printing Text, Counters, Box/Lot codes, Julian Dates, Shift codes, and Images in real-time up to 13.5mm.
- Comprehensive Barcoding: Prints complex 1D and 2D barcodes including Code 11, Code 39, Code 128, EAN, QR, Datamatrix, and GS1 Datamatrix.
- Print Online Data (POD): Seamlessly integrate with external devices like cameras, PLCs, and checkweighers via the RJ45 port for intelligent, automated coding.
- Extensive Language Support: Features 33 system languages including English, German, Spanish, Arabic, Hindi, Thai, and Vietnamese.
- Connectivity & Storage: Easy Data Upload, Backup & Recovery via USB, with built-in sensors and support for external alarms and encoders.
