DIKAI
Fiber Laser Printer
Permanent Marking
High-Speed Coding
No Consumables
DIKAI Fiber Laser Printer is a compact, efficient and low-maintenance laser marking solution for high-contrast, permanent coding on metal, hard plastic, PP, flexible packaging films and other industrial materials. Designed for production environments, it supports fast marking speed, clear traceability and easy integration with existing packaging lines.
- Uses 1064 nm fiber laser technology for permanent, high-contrast marking on suitable industrial surfaces.
- High-speed operation with flying mark capability for continuous production lines and simultaneous product marking.
- Linux-based controller with 10-inch touch screen, SD card, USB 2.0 and communication interface support.
- Cost-effective operation with air cooling, no ink consumables and a compact design for easy line integration.
Not ready to buy yet? Talk to someone from our team

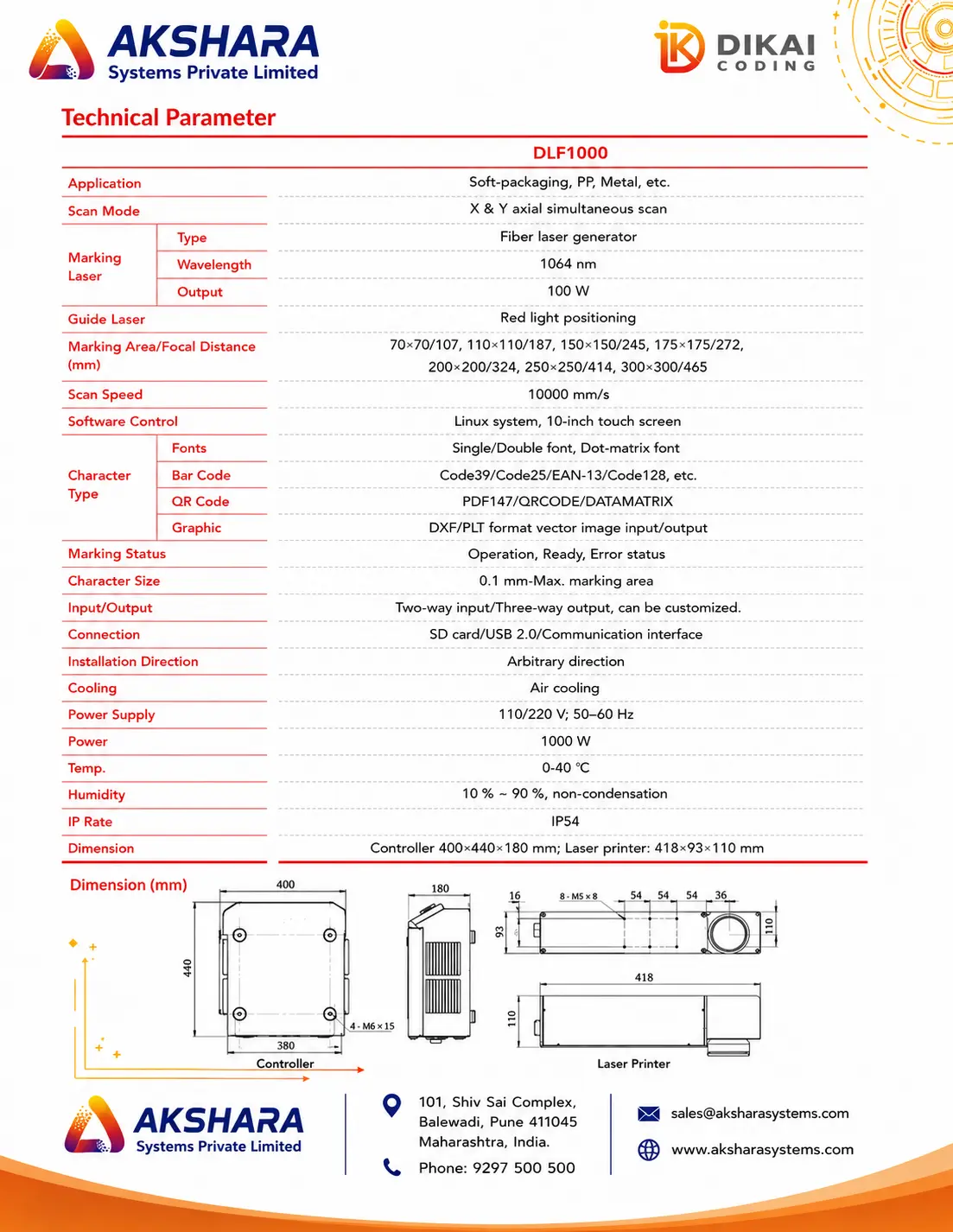

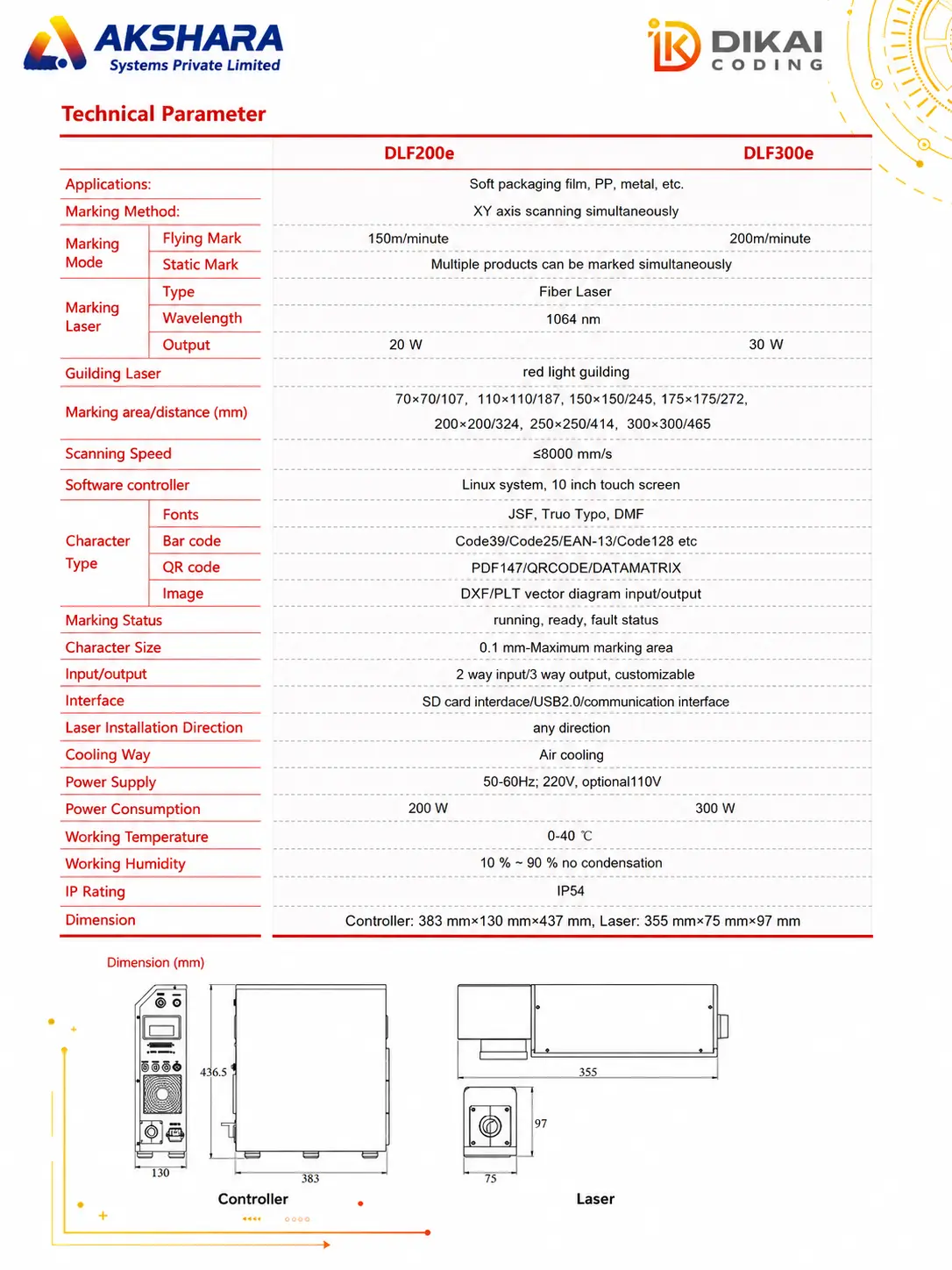

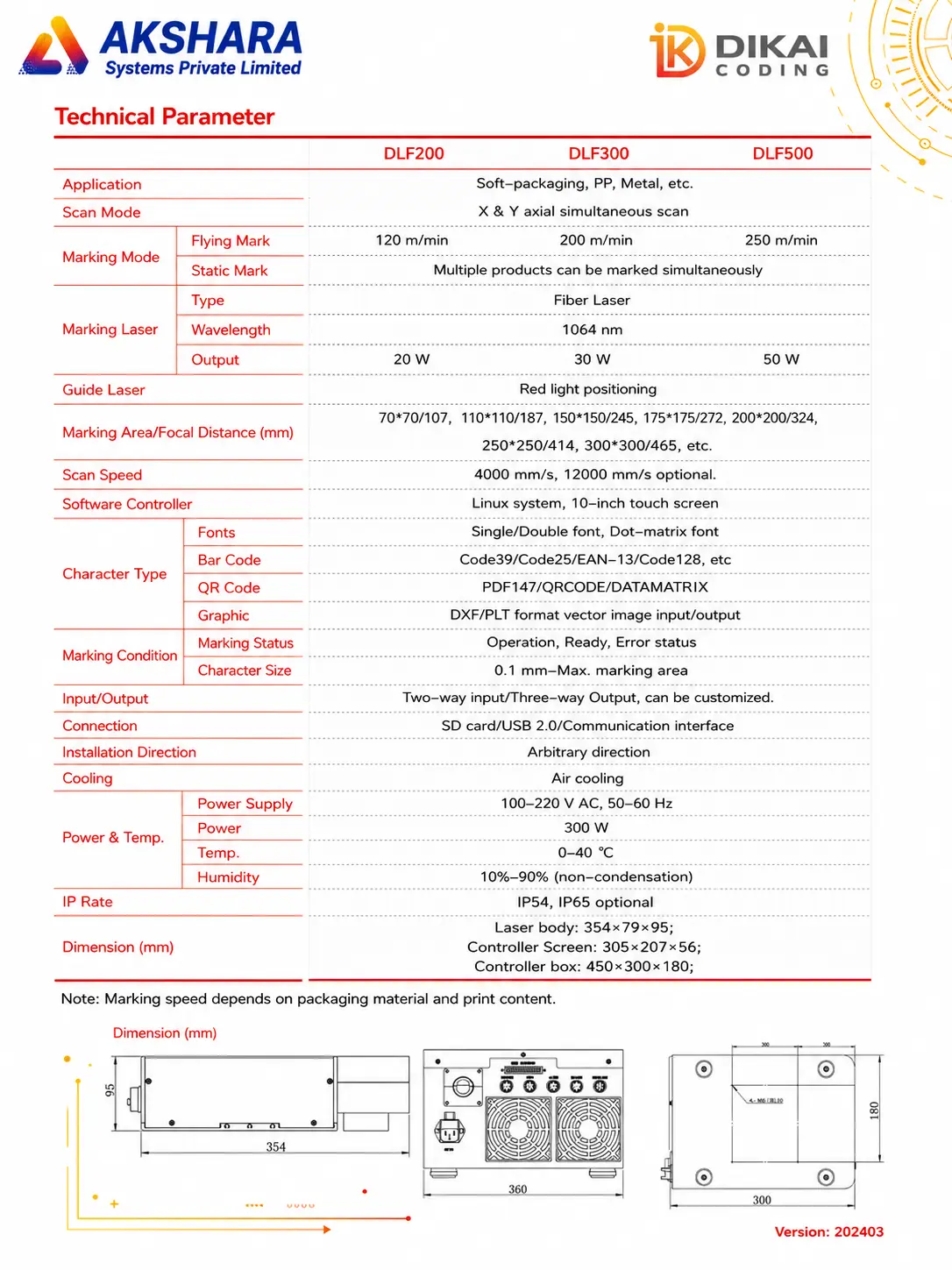

| Product Type | Fiber Laser Marking Machine |
| Model Series | DLF Series |
| Available Models | DLF200e, DLF300e, DLF200, DLF300, DLF500, DLF1000 |
| Laser Output Options | 20 W, 30 W, 50 W, 100 W |
| Laser Type | Fiber Laser / Fiber Laser Generator |
| Wavelength | 1064 nm |
| Application | Soft packaging film, PP, metal, hard plastic and suitable industrial materials |
| Marking Method | X & Y axis scanning simultaneously |
| Flying Mark Speed | Up to 250 m/min depending on model and application |
| Static Marking | Multiple products can be marked simultaneously |
| Guide Laser | Red light positioning / red light guiding |
| Marking Area / Focal Distance | 70×70/107, 110×110/187, 150×150/245, 175×175/272, 200×200/324, 250×250/414, 300×300/465 mm |
| Scan Speed | Up to 12000 mm/s optional, model-dependent |
| Software Controller | Linux system with 10-inch touch screen |
| Supported Content | Single/double fonts, dot-matrix fonts, barcodes, QR codes, graphics and vector input/output |
| Barcode Support | Code39, Code25, EAN-13, Code128 and more |
| QR Code Support | PDF147, QR Code, DataMatrix |
| Graphic Support | DXF/PLT format vector image input/output |
| Connection | SD card, USB 2.0 and communication interface |
| Input / Output | Two-way input / three-way output, customizable |
| Cooling | Air cooling |
| Power Supply | 100–220 V AC / 110–220 V, 50–60 Hz depending on model |
| Operating Temperature | 0–40 °C |
| Working Humidity | 10%–90%, non-condensation |
| IP Rating | IP54, IP65 optional on selected models |
| Brand | DIKAI |
Detailed Description

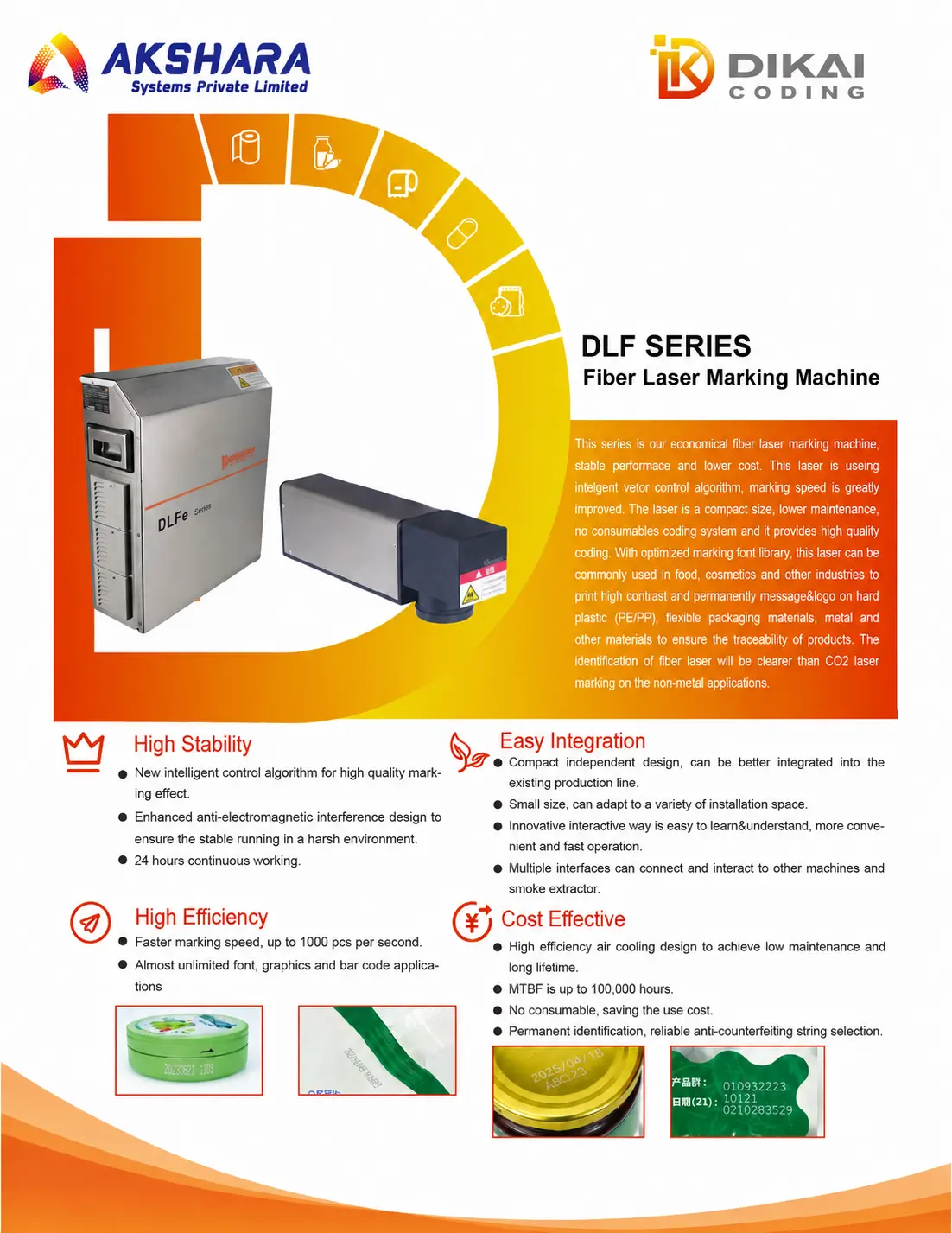

The DIKAI DLF Series Fiber Laser Printer is an economical and stable laser marking machine designed for high-quality industrial coding. It uses an intelligent vector control algorithm to improve marking speed while keeping the system compact, low-maintenance and cost-effective for continuous production use.
Key Capabilities
- High Stability: Intelligent control algorithm, enhanced anti-electromagnetic interference design and 24-hour continuous working support for demanding production environments.
- High Efficiency: Fast marking speed and support for almost unlimited fonts, graphics, barcodes and traceability codes.
- Easy Integration: Compact independent design with multiple interfaces for connecting with production lines, smoke extractors and supporting equipment.
- Cost Effective: Air-cooled design, no consumables, long service life and reduced operating cost compared to ink-based coding systems.
- Industrial Applications: Commonly used in food, cosmetics, flexible packaging, PP, metal, hard plastic and traceability marking applications.
