MARK1
M20e PROe (1 Inch) Thermal Inkjet Printer
Dual TIJ 2.5 Printheads
25.4mm Print Height
7" Touch Screen

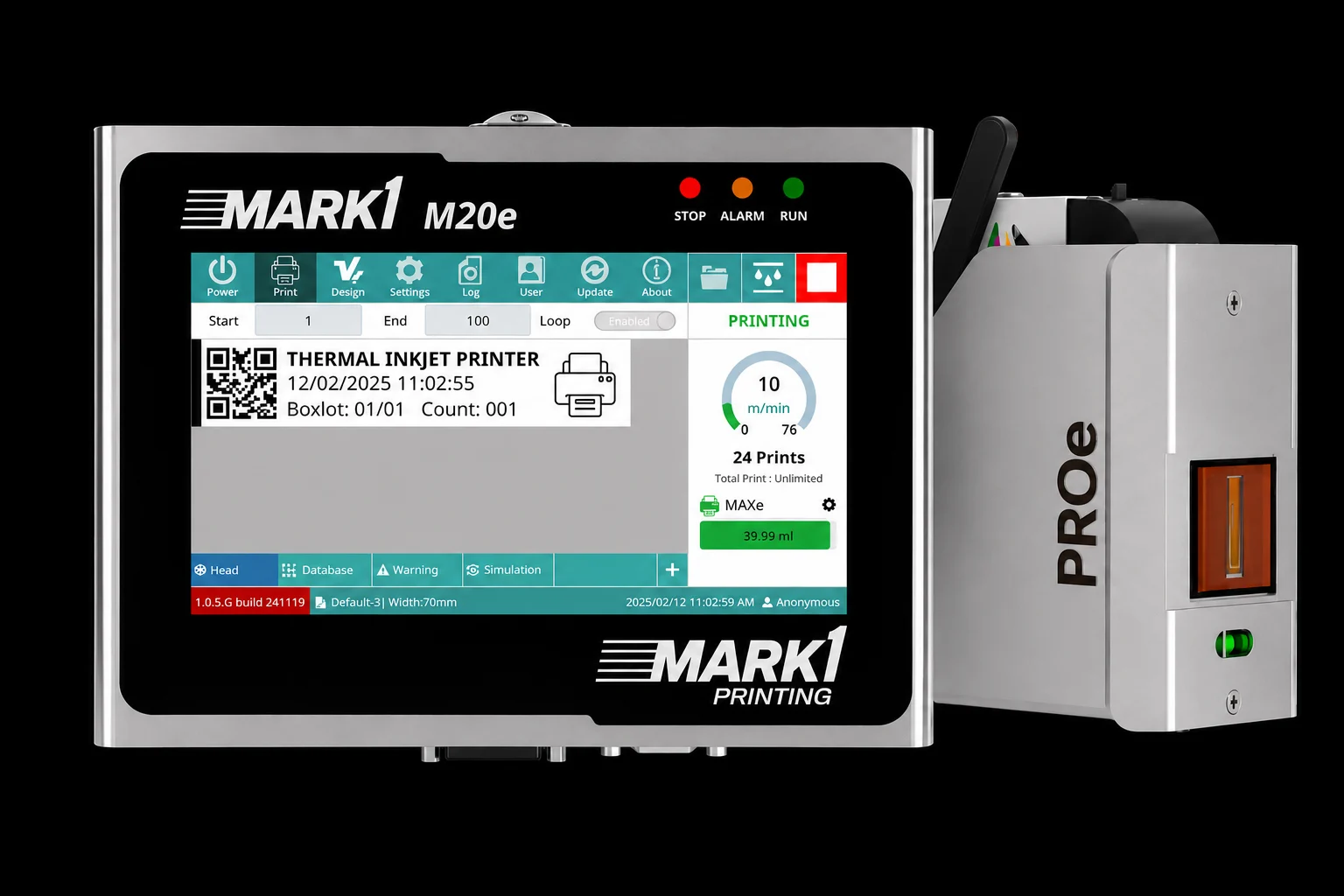

The MARK1 M20e PROe is a cost-effective, high-performance Thermal Inkjet Printer equipped with dual HP TIJ 2.5 printheads. Engineered for expansive coding requirements, it seamlessly stitches two printheads to deliver a total, crisp print height of 25.4mm (1 Inch).
- Features dual HP TIJ 2.5 printheads offering a combined maximum print height of 25.4mm (1 Inch).
- Achieves high-speed output up to 76m/min at 300x300 DPI with resolutions reaching 600x600 DPI.
- Intuitive WYSIWYG 7" LCD Resistive Touch Screen for effortless template designing and control.
- Integrates flawlessly with external devices like PLCs, Cameras, and Checkweighers via RJ45 port.
Not ready to buy yet? Talk to someone from our team
| Printing Technology | HP TIJ 2.5 (Dual Printheads) |
| Max Print Height | 25.4 mm (1 Inch) |
| Max Print Speed | 76 m/min @ 300x300 DPI |
| Resolutions | Max 600 x 600 DPI |
| Display | 7" LCD Resistive Touch Screen |
| Ink Type Options | Solvent Based, Water Based, UV Curable |
| Supported Databases | TXT, CSV, SQL, SQLite, and MySQL |
| Throw Distance | Up to 5 mm |
| Power Supply | DC 24V 2.5A, 60W |
| Brand | MARK1 |
| Model Number | M20e PROe |
| Controller Weight | 1,215 g |
| Printhead Weight | 402.97 g |
Detailed Description
The MARK1 M20e PROe controller is engineered to drive dual TIJ 2.5 printheads, providing a versatile solution for large character coding up to 25.4mm without the need for complex multi-controller setups. It delivers sharp, high-contrast marks on diverse packaging surfaces, maximizing efficiency and print area.
Key Capabilities
- Advanced Print Elements: Capable of printing Text, Counters, Box/Lot codes, Julian Dates, Shift codes, and Images in real-time.
- Comprehensive Barcoding: Prints complex 1D and 2D barcodes including Code 11, Code 39, Code 128, EAN, QR, Datamatrix, and GS1 Datamatrix.
- Print Online Data (POD): Seamlessly integrate with external devices like cameras, PLCs, and checkweighers via the RJ45 port for intelligent, automated coding.
- Extensive Language Support: Features 33 system languages and supports 27 distinct print languages.
- Connectivity & Storage: Easy Data Upload, Backup & Recovery via USB, with built-in sensors and support for external alarms and encoders.
